Product Overview
LA-75PM/3
Model :
Low Pressure PM-VSD Screw Compressor
Category :
55 kW
Power :
17.5 m³/min
FAD (Free Air Delivery) :
0.3 Bar
Pressure :
73±3 dB
Noise Level :
DN80
Air Outlet Size :
2300 x 1740 x 1900 mm
Dimension :
2120 kg
Weight :

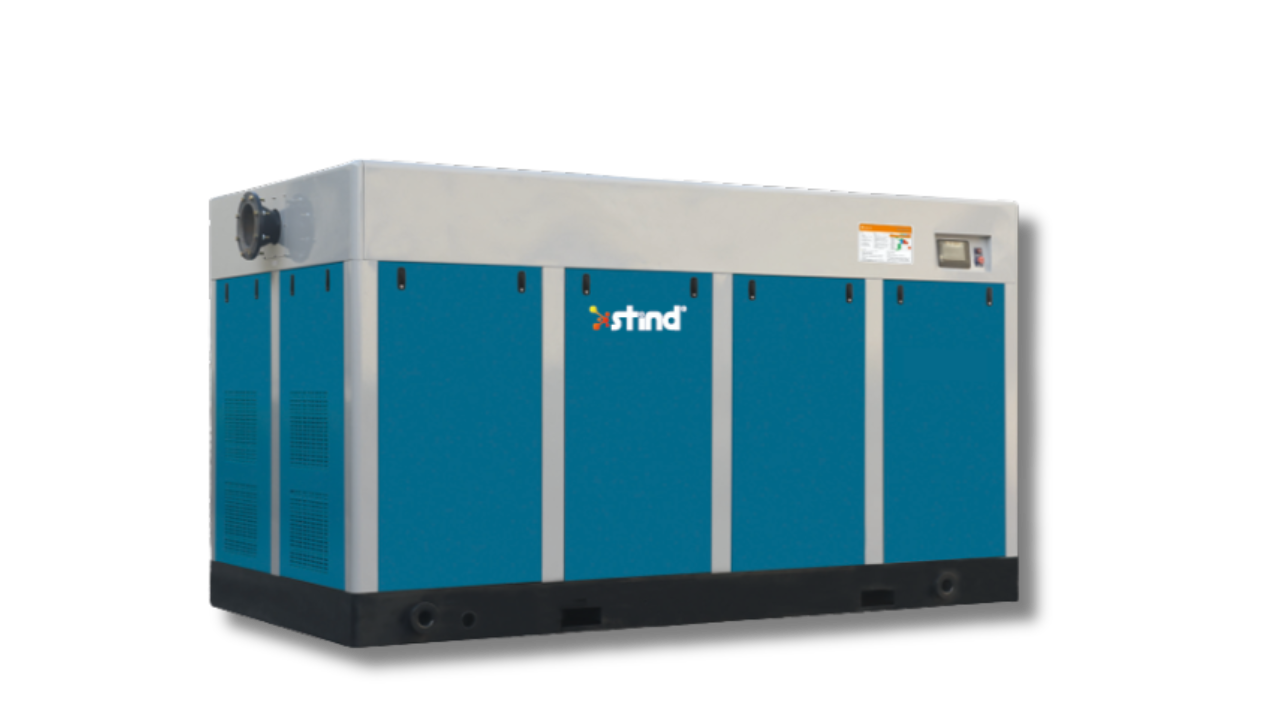

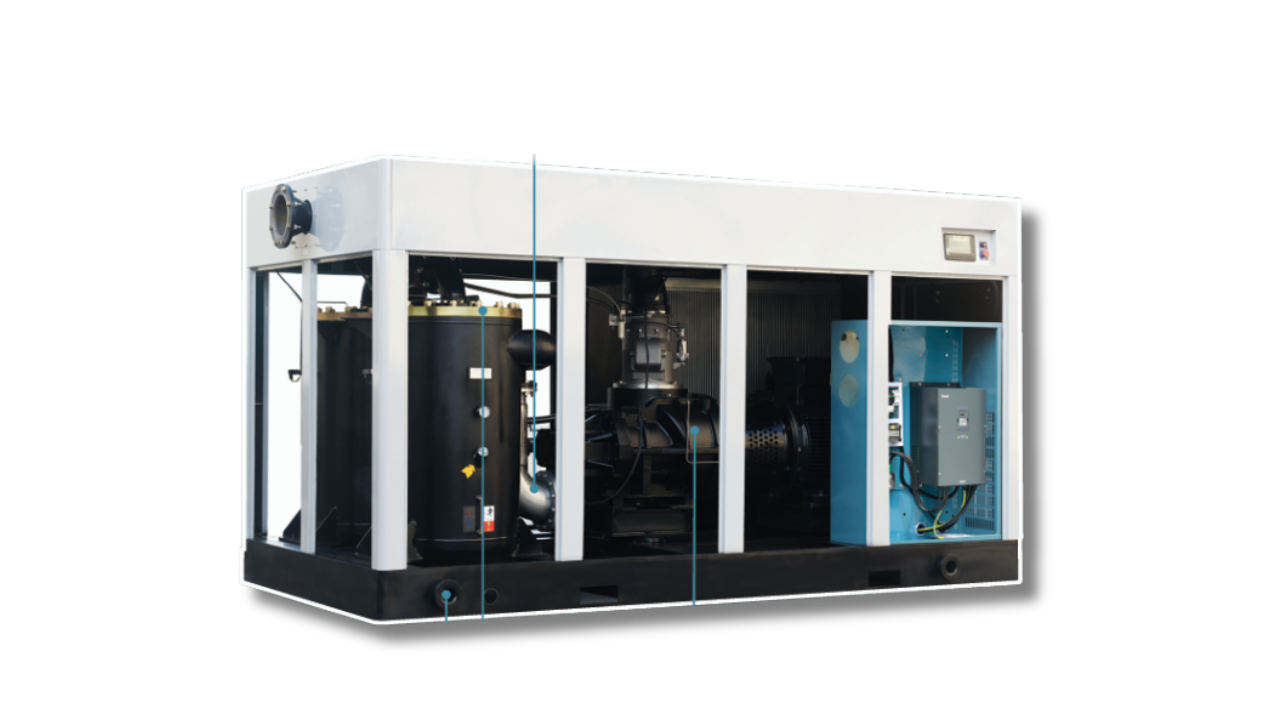

STIND Low Pressure PM-VSD Compressors
The LA-75PM/3 is optimized for high-volume air output at ultra-low pressure, making it ideal for textile drying, paper manufacturing, food packaging, and pneumatic conveying. With Variable Speed Drive technology, it provides remarkable energy savings and stable output for continuous processes.
- Built for ultra-low pressure operations (0.3 bar)
- High-efficiency PM motor with intelligent VSD
- Energy savings up to 35%
- Low-pressure drop design with dual oil separator
- Compact footprint for easy integration
- Real-time performance monitoring via touch panel
High Volume, Low Cost Operation
Designed for industries where volume matters more than pressure, the LA-75PM/3 delivers a consistent air stream with minimal energy waste. Its durable construction and automated control system ensure long-term savings and low maintenance needs, even in intensive 24/7 operations.
